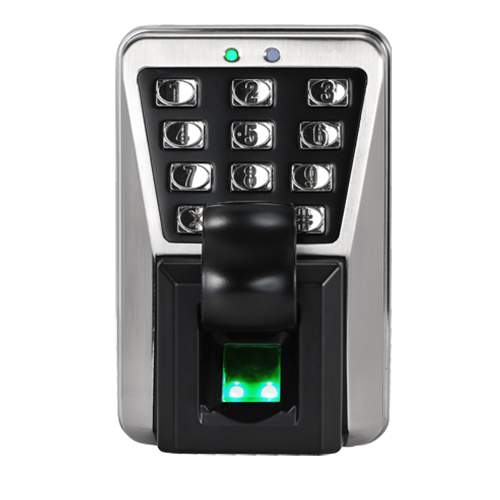

ZKTeco ZK MA500 Biometric Fingerprint Access Control & Time Attendance

The ZKTeco MA500 is a rugged and highly reliable biometric fingerprint terminal designed for both time attendance and access control applications. Built to operate in standalone or networked mode, the MA500 supports TCP/IP and RS485 communication and is ideal for environments that demand durability, security, and consistent performance. With its IP65-rated metal housing and backlit keypad, the device performs reliably even in high-traffic or outdoor installations.

Powered by ZKTeco’s advanced fingerprint recognition algorithm and supporting a variety of authentication methods, the MA500 combines efficiency, security, and versatility in a compact, vandal-resistant design.

Product Features

IP65-Rated Rugged Design

Constructed with a durable metal casing and sealed to IP65 standards, the MA500 withstands dust, water, and harsh outdoor conditions, making it suitable for both indoor and outdoor use.

Standalone and Network Capability

Can function independently or be integrated into larger systems via TCP/IP and RS485 for remote management using ZKAccess3.5 software.

Multi-Mode Authentication

Supports multiple user verification methods including fingerprint, RFID card (EM standard or Mifare optional), PIN, or combinations such as PIN & fingerprint or card & fingerprint.

Advanced Fingerprint Recognition

Equipped with an optical sensor and ZKFinger VX10.0 algorithm, the terminal ensures fast and accurate fingerprint matching in under 1.5 seconds.

Large User and Transaction Capacity

Holds up to 3,000 fingerprint templates, 30,000 RFID cards, and stores up to 100,000 transaction logs.

Full Access Control Integration

Includes support for third-party electric locks, door sensors, alarms, and exit buttons, offering a complete access control solution.

Developer-Friendly SDK

Supports the New PULL SDK, allowing easy integration into third-party systems and custom software applications.

Product Specifications

• Model: MA500
• Software Compatibility: ZKAccess3.5
• SDK: New PULL SDK
• Fingerprint Sensor: Optical sensor with protective cover
• Algorithm Version: ZKFinger VX10.0
• Fingerprint Capacity: 3,000
• Card Capacity: 30,000 (EM standard, Mifare optional)
• Log Capacity: 100,000 transactions
• Authentication Methods: Fingerprint only, RFID only, PIN only, or combinations (FP/RF/PIN, PIN & FP, PIN & RF)
• Access Control Interfaces: Electric lock, door sensor, alarm, exit button
• Communication: TCP/IP, RS485
• Wiegand Signal: Wiegand output
• Ingress Protection Rating: IP65
• Power Supply: 12V DC, 3A
• Operating Temperature: 0°C to 45°C
• Dimensions: 83 mm (W) × 127.5 mm (H) × 74 mm (D)
