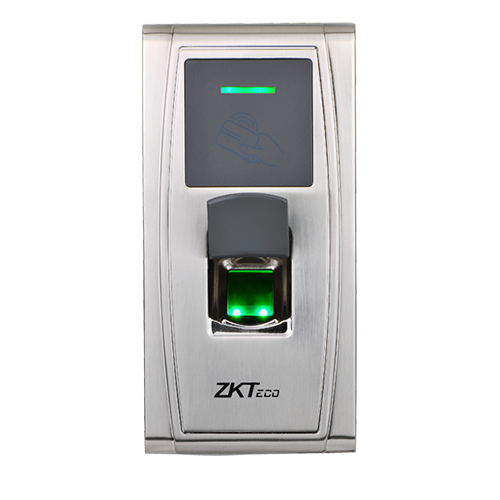

ZKTeco ZK MA300 Stainless Fingerprint Reader Outdoor

The ZKTeco MA300 is a stainless steel biometric fingerprint reader designed specifically for outdoor access control applications. Engineered with ZKTeco’s advanced fingerprint recognition algorithm, the MA300 delivers fast, reliable, and accurate user identification, even in harsh environments. The device features a rugged metallic housing and carries an IP65 rating for protection against water, dust, and external damage, making it ideal for outdoor installations in both residential and commercial settings.

The MA300 offers flexible installation options—either as a standalone device or integrated with third-party access control systems via a 26-bit Wiegand interface. With built-in TCP/IP, RS485, and USB-host communication options, system integration and data management are simple and efficient. Users can be enrolled directly on the device using an administrator card in standalone mode, adding to its versatility.

Product Features

Weatherproof and Durable Construction

IP65-rated stainless steel casing provides strong resistance to water, dust, and vandalism, making the MA300 ideal for outdoor environments.

Fast and Accurate Fingerprint Recognition

Utilizes the ZKFinger VX10.0 algorithm and ZK optical sensor to ensure high-speed fingerprint matching with excellent precision.

Flexible Installation

Supports both standalone operation and integration with third-party control panels using a 26-bit Wiegand protocol.

High Storage Capacity

Stores up to 1,500 fingerprint templates, 10,000 ID cards, and logs up to 100,000 access events, supporting high-volume usage.

Advanced Access Control Functions

Includes support for time zones, user groups, anti-passback, and external USB keypads for secure access control.

Multiple Communication Options

Offers RS485, TCP/IP, and USB-host connectivity for flexible system integration and easy data transfer.

Optional Features

Supports MIFARE and HID card technologies (optional) for added authentication flexibility.

Product Specifications

• Fingerprint Capacity: 1,500 templates
• ID Card Capacity: 10,000
• Transaction Capacity: 100,000
• Hardware Platform: ZEM720
• Sensor: ZK Optical Sensor
• Algorithm Version: ZKFinger VX10.0
• Communication Interfaces: RS485, TCP/IP, USB-host
• Access Control Interface: Compatible with 3rd-party electric locks, door sensors, exit buttons, and alarms
• Wiegand Signal: Input and Output
• Standard Access Control Functions: Time zone, group, anti-passback, external USB keypad
• Optional Functions: MIFARE, HID card support
• Power Supply: 12V DC
• Operating Temperature: -10°C to 60°C
• Operating Humidity: 10% to 90%
• Protection Grade: IP65
• Device Dimensions: 73 mm × 148 mm × 34.5 mm
• Gross Weight: 1.15 kg
