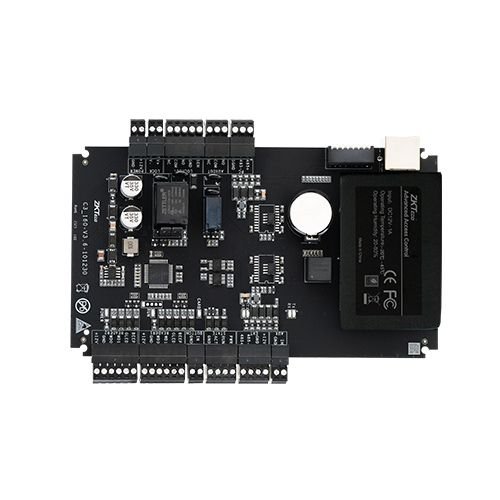

ZKTeco C3-100 Single Door Controller – Professional Access Control System with TCP/IP

The ZKTeco C3-100 Single Door Controller is a professional-grade access control solution designed for secure, scalable, and efficient access management. Built for demanding environments, this robust controller supports advanced access features and is ideal for single-door installations in commercial, institutional, and industrial settings. Its reliable hardware and versatile integration capabilities make it a powerful choice for modern access control systems.

Engineered for performance and longevity, the C3-100 supports up to 30,000 users and logs up to 100,000 access events. It is equipped with TCP/IP and RS-485 communication protocols, ensuring reliable and fast data exchange. The controller is housed in a metal cabinet, complete with a built-in power supply, and complies with both UL294 and CAN/ULC-S319 standards, ensuring safety and compatibility in security-critical installations.

Product Features

High-Capacity User and Event Storage

Supports up to 30,000 users and logs up to 100,000 access transactions, offering robust data management for secure facilities.

Flexible Reader Compatibility

Includes multiple reader ports supporting 26/34-bit Wiegand and 8-bit burst for PIN entry, allowing integration with various ID and IC card readers.

TCP/IP and RS-485 Communication

Equipped with both communication protocols for seamless system integration and remote management over a secure network.

UL-Certified Hardware

Built to UL294 and CAN/ULC-S319 certification standards, ensuring compliance with strict safety and performance guidelines.

Multi-Door Integration Options

Although optimized for single-door use, the C3-100 can be configured with multiple auxiliary inputs/outputs for advanced access control logic and scalability.

Visual Status Indicators

LED indicators for communication, power, status, and card activity make diagnostics and monitoring simple.

Product Specifications

Capacity

• User capacity: 30,000
• Event buffer: 100,000 transactions
• RAM: 32MB

Reader Ports

• 4 × 26/34-bit Wiegand inputs
• 4 × 8-bit burst inputs for PIN codes

Output Ports

• 2 × Auxiliary FORM-C relay outputs (SPDT 2A@30V AC)
• 2 × Main FORM-C relay outputs (SPDT 5A@36V DC or 8A@30V AC)

Input Ports

• 6 × Exit button inputs
• 6 × Door sensor inputs
• 6 × Auxiliary inputs

Communication

• RS-485
• TCP/IP
• Baud rate: 9600–57600 baud

Power Supply

• Input voltage: 9.6V–14.4V DC
• Power requirement: 1A

Environment

• Operating temperature: 0°C ~ 45°C (32°F ~ 113°F)
• Operating humidity: 20% ~ 80%

Dimensions & Packaging

• Controller dimensions: 160 mm (L) × 106 mm (W)
• Package dimensions: 8″ × 6″ × 2.5″
• Gross weight: 14 lbs

CPU

• 32-bit MIPS processor
