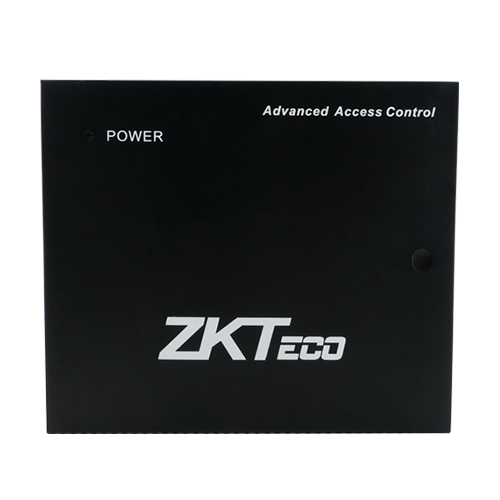

ZKTeco C3-100 PoE Bundle – Single-Door Access Control Panel with PoE Splitter

The ZKTeco C3-100 PoE Bundle is a compact, professional-grade access control solution designed for secure, efficient single-door management. Known for its rugged construction and reliability, the C3-100 controller delivers high-capacity performance, supporting up to 30,000 users and 100,000 event logs. This bundle includes a PoE splitter that simplifies installation by delivering 12V power and data through a single Ethernet cable, powering both the controller and a 12V DC lock. Ideal for commercial buildings, schools, server rooms, and secure facilities requiring intelligent access control.

Product Features

Rugged and Reliable Controller The C3-100 controller is engineered for durability and consistent performance in demanding security environments. Integrated PoE Power Supply Supplied with a PoE splitter that provides 12V 2A output—enough to power the C3-100 controller and one 12V DC electronic lock—directly from a PoE network switch. High User and Event Capacity Stores up to 30,000 users and 100,000 event transactions locally, ensuring uninterrupted access control even during network outages. Dual Reader and Door Support Controls a single door with support for two readers (entry and exit) and accommodates 26-bit Wiegand readers as well as custom reader formats upon request. Versatile Input and Output Options Features auxiliary input/output ports for additional system integration, such as sensors, alarms, exit buttons, and electric locks. Seamless Communication Supports both RS-485 and Ethernet TCP/IP communication for flexible integration into existing networks.

Product Specifications

C3-100 Controller

• User capacity: 30,000
• Event buffer: 100,000 transactions
• Communication: RS-485, Ethernet
• Nominal voltage: 12V
• Standby current: 40 mA
• Operating temperature: 0°C ~ 45°C
• Operating humidity: 20% ~ 80%
• Number of doors controlled: 1
• Number of readers supported: 2
• Reader type: 26-bit Wiegand (others upon request)
• Inputs: 2 (Exit Device and Door Status)
• Outputs: 2 (1 Form C relay for lock, 1 Form C relay for auxiliary output)
• Auxiliary output: 1
• Dimensions (controller board): 160 mm × 106 mm
• Dimensions (bundle): 305.2 mm × 298.4 mm × 89 mm
• Weight: 3.35 kg

PoE Splitter

• Maximum power: 15.4W (IEEE 802.3af), 25.5W (IEEE 802.3at)
• Input voltage: 36–57V
• Output voltage: 12V
• Network standards: IEEE 802.3i 10BASE-T, 100BASE-TX, IEEE 802.3x flow control, IEEE 802.3af/at
• Working temperature: 0°C ~ 45°C
• Interface protection: IEC61000-4-2 compliant (±15KV air, ±8KV contact ESD)
• Surge resistance: 8/20μs 24A (12A)
• Input interface: RJ45
• Output interface: RJ45 and DC power output
• Data transfer rate: 10/100/1000 Mbps
• Maximum transmission distance: 100 meters
