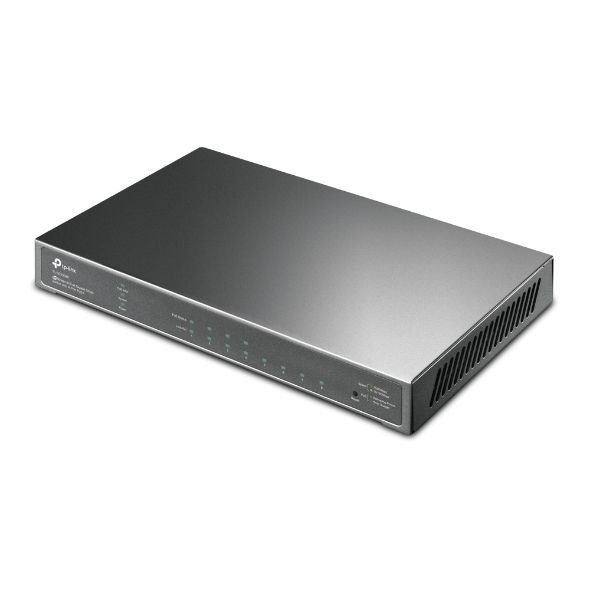

TP-Link TL-SG2008P JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+

The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

TL-SG2008P Features

• 62W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62W.
• Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

TL-SG2008P Specifications

Features / filters
LAN standard	Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports	8x [10/100/1000M (RJ45)]
Number of PoE ports	4x [802.3af/at (1G)]
Management	Yes
Power (W)	62
Switching layer	2
Type of case	Desktop

Hardware features
Standards and protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Ports	8 RJ45 10/100/1000 Mbps ports (ports 1-4 with PoE 802.3at/af ) Autonegotiation/Auto MDI/MDIX
Network cabling	10BASE-T: UTP cat 3, 4 or 5 cable (up to 100m) 100BASE-TX/1000Base-T: UTP cat 5, 5e, or higher cable (up to 100m)
Fanless	Yes
Power supply	External power supply (output power: 53.5 V DC/1.31 A)
Power consumption	7.9 W (220 V/50 Hz) (with no PoE-enabled device connected) 79.2 W (220 V/50 Hz) (when operating at 62 W)
PoE ports (RJ45)	Standards: 802.3af/at PoE Ports: 4 ports Power supply: 62 W*
Dimensions (H x W x D)	209 mm x 126 mm x 26 mm (8.2 x 4.9 x 1.0 inch)
Performance
Capacity	16 Gbps
MAC Address Table	8K
Packet buffer	4.1 Mbit
Jumbo frames	9 KB
Software functions
Quality of Service function	Support for 802.1p CoS/DSCP prioritization 8 prioritization queues Priority scheduling mode: SP (Strict Priority), WRR (Weighted Round Robin) Configurable queue weights Bandwidth Control: Transfer rate limiting based on port/data flow Smoother Operation Storm Control: Multiple control modes (kbps/indicator), Broadcast/Multicast/Unknown-Unicast control
L2 and L2 functions	DHCP Relay: DHCP VLAN Relay DHCP L2 Relay Link Aggregation: Static link aggregation, up to 8 aggregation groups and up to 8 ports per group, LACP 802.3ad Spanning Tree Protocol (STP): STP 802.1D, RSTP 802.1w, MSTP 802.1s, STP Security: TC Protection, BPDU Packet Filtering/Protection, Root Protection Loopback detection Flow Control: 802.3x flow control Mirroring: Port Mirroring, One-to-One Transmission, Many-to-One Transmission, Flow-based, Input/Output port/both ports, CPU Mirroring Device Link Detect Protocol (DLDP) LLDP/ LLDP-MED 802.1ab
L2 Multicast	511 shared IPv4, IPv6 multicast groups IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Configuration Multicast VLAN Registration (MVR) Multicast packet filtering MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Configuration
IPv6 Support	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping Neighbor discovery (ND) used by IPv6 nodes Path maximum transmission unit (MTU) discovery ICMP v6 TCPv6/UDPv6 IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), SNMP IPv6, SSH IPv6, SSL IPv6, Http/Https, TFTP IPv6
VLANs	VLAN groups: Max 4K VLAN groups 802.1Q VLAN Tagging VLAN MAC Address VLAN Protocol GVRP Voice VLAN
Access control lists	Support for up to 230 entries Time intervals: Time quantum, Time interval per week, Universal time interval, Holiday period Time-based access control list (ACL) MAC Address ACL: Source MAC address, Destination MAC address, VLAN ID, User Priority, Ethertype IP Address ACL: Source IP address, Target IP address, IP protocol, TCP flag, Source TCP/UDP port, Destination TCP/UDP port, DSCP/TOS of IP address IPv6 ACL Combined ACL Rule actions: Allow/Deny Access control policies: Mirror, Rate Limit, Redirect, QoS Remark ACL Binding Rule: Port Binding, VLAN Binding Actions for flows: Mirror (to the supported interface), Redirect (to the supported interface), Rate Limit, QoS Remark
Transmission security	AAA 802.1X authentication: Port-based authentication, MAC address-based authentication (Host), Authentication methods available: PAP/EAP-MD5, MAB, Guest VLAN, Radius authentication and authorization IP/IPv6 and MAC address binding: 512 possible entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND attack detection Source IP Protection: 253 possible entries, Source IP address Source MAC address Source IPv6 address protection: 183 possible entries, Source IPv6 address Source MAC address Protection against DoS attacks Port protection by static/dynamic/permanent port configuration: Up to 64 MAC addresses per port Storm Control Broadcast/Multicast/Unicast: Control Mode (kbps/indicator) Port isolation Secure web-based management via HTTPS with SSLv3/TLS1.2 encryption Secure CLI management with SSHv1/SSHv2 encryption Access control based on IP/Port/MAC
MIBs	MIB Database II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Accounting Client MIB (RFC2618) Ping and Traceroute packets to remote interface MIB (RFC2925) Support for private TP-Link MIB databases RMON MIB (RFC1757, RMON 1,2,3,9)
Management
Omada application	Yes
Central management	Omada cloud-based controller Omada Controller Hardware (OC300) Omada Controller Hardware (OC200) Omada Software Controller
Access to the cloud	Yes (via OC300, OC200, Omada cloud-based controller or Omada software controller)
Management panel functions	GUI graphical interface Command line interface CLI SNMP v1/v2c/v3 SNMP Trap/Inform RMON (groups 1, 2, 3, 9) SDM template DHCP/BOOTP client Dual Image, Dual Configuration CPU usage monitoring Cable diagnostics EEE SNTP System logs
Other
Certificates	CE, FCC, RoHS
Contents of the package	TL-SG2008P Power Supply Installation Manual Rubber feet
System requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Work environment	Operating temperature: 0℃~40℃ (32℉~104℉); Storage temperature: -40℃~70℃ (-40℉~158℉); Operating air humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing
