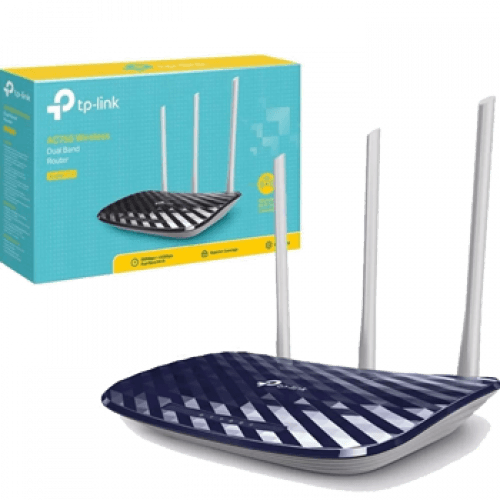

TP-Link Archer C20 AC750 Dual-Band Wireless Router

Upgrade your home network with the TP-Link Archer C20, a reliable dual-band AC750 wireless router built for smooth HD streaming, faster downloads, and improved Wi-Fi stability. Delivering combined speeds of up to 750 Mbps over the 2.4 GHz and 5 GHz bands, the Archer C20 allows for seamless multitasking and better bandwidth distribution across your smart TVs, laptops, and mobile devices. Three high-performance antennas ensure broader coverage and more stable connections throughout medium-sized homes, while support for IPv6, guest networking, and parental controls adds security and flexibility to your home internet experience.

Product Features

Dual-Band AC750 Performance

Supports simultaneous 2.4 GHz (300 Mbps) and 5 GHz (433 Mbps) connections for higher total bandwidth and smoother performance across multiple devices.

Expanded Wireless Coverage

Equipped with three fixed external antennas to enhance Wi-Fi signal strength and coverage, ensuring stable connections in 2-bedroom homes.

3-in-1 Operation Modes

Works as a Router, Access Point, or Range Extender to accommodate different networking setups and extend existing wireless coverage.

Smart Wi-Fi Management

The intuitive TP-Link Tether App allows for easy setup, network monitoring, and management directly from your smartphone or tablet.

Guest Network Access

Provides separate, secure access for guests on both 2.4 GHz and 5 GHz bands, protecting your main network and personal data.

Parental Controls

Restrict access to content and set time limits for connected devices using URL filtering and scheduling tools.

IPTV Streaming Optimization

Supports IGMP Proxy, IGMP Snooping, and other features to ensure smooth IPTV streaming without buffering or signal drops.

IPv6 Ready

Supports IPv6 to future-proof your network and improve address management and routing efficiency.

Product Specifications

• Wireless Standards:
  • Wi-Fi 5
  • IEEE 802.11ac/n/a 5 GHz
  • IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds:
  • AC750
  • 5 GHz: up to 433 Mbps
  • 2.4 GHz: up to 300 Mbps
• WiFi Range: Suitable for 2-bedroom houses
• Antennas: 3× fixed antennas
• WiFi Capacity: Medium
  • Dual-Band device distribution for optimized performance
• Operating Modes:
  • Router Mode
  • Access Point Mode
  • Range Extender Mode

Hardware

• Processor: Single-Core CPU
• WAN Port: 1× 10/100 Mbps
• LAN Ports: 4× 10/100 Mbps
• Buttons: WPS/Wi-Fi, Power On/Off, Reset
• Power Supply: 9 V ⎓ 0.6 A

Security

• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network:
  • 1× 2.4 GHz Guest Network
  • 1× 5 GHz Guest Network

Software

• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV Support: IGMP Proxy, IGMP Snooping
• DHCP: Address Reservation, DHCP Client List, DHCP Server
• Dynamic DNS: NO-IP, Comex, DynDNS
• Management: TP-Link Tether App, Web-based Interface

Physical

• Dimensions: 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
• Package Contents:
  • TP-Link Archer C20 Wi-Fi Router
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

System Requirements

• JavaScript-enabled browsers: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
• Cable or DSL modem (if needed)
• Active subscription with an internet service provider

Certifications and Environmental Conditions

• Certifications: FCC, CE, RoHS
• Operating Temperature: 0℃ to 40℃ (32℉ to 104℉)
• Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

Test Data

• WiFi Transmission Power:
  • CE: <20dBm (2.4 GHz), <23dBm (5 GHz)
• WiFi Reception Sensitivity:
  • 5 GHz:
    • 11a 54M: -76dBm
    • 11ac VHT20 MCS8: -71dBm
    • 11ac VHT40 MCS9: -66dBm
    • 11ac VHT80 MCS9: -62dBm
  • 2.4 GHz:
    • 11g 54M: -76dBm
    • 11n HT20 MCS7: -73dBm
    • 11n HT40 MCS7: -71dBm
