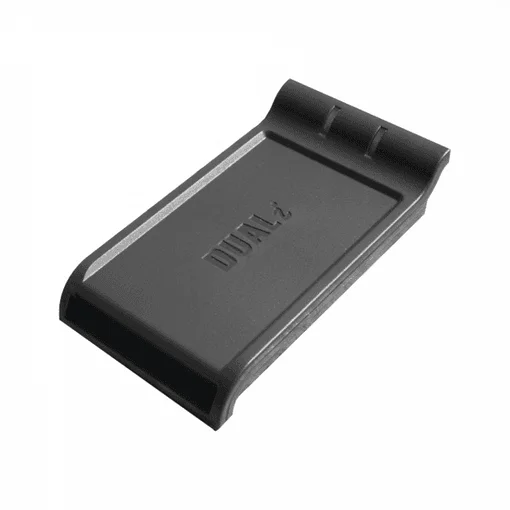

Suprema DE-620 USB Mifare Card Reader and Writer for Contactless Smart Cards

The Suprema DE-620 is a high-performance USB-based Mifare card reader and writer, designed for seamless integration into PC-based systems and smart card infrastructures. Supporting multiple RFID standards including ISO14443, ISO18092, MIFARE Classic®, Felica, and ISO15693, the DE-620 is ideal for a variety of applications such as access control, e-passport authentication, campus systems, and e-payment solutions. Built on an advanced ARM7 processor, the DE-620 features a smart card interface, secure SAM support, and PC/SC compliance, delivering high-speed contactless communication at up to 847 kbps. Its plug-and-play USB interface makes installation simple for both desktop and embedded system environments.

Product Features

Multi-Standard RFID Support

Compatible with ISO14443, ISO18092 (NFC), MIFARE Classic®, Felica, and ISO15693, offering excellent flexibility across various smart card systems and technologies.

High-Speed Data Transmission

Provides fast contactless communication with data rates up to 847 kbps, making it suitable for high-throughput applications such as card issuance and authentication.

Integrated SAM and Contact Smart Card Interface

Features a secure access module (SAM) interface and smart card contacts for secure applications, such as e-passport verification and secure element communication.

USB Plug-and-Play Connectivity

Built-in USB controller enables instant plug-and-play functionality with PCs or host systems, eliminating the need for external power or additional drivers.

PC/SC Compliance and Firmware Upgrade Support

Fully PC/SC compliant for standardized smart card communication and includes bootloader support for easy firmware updates via USB.

Optimized for Modern Applications

Perfect for applications including e-passport systems, e-payment solutions, card issuing systems, campus access control, and NFC development platforms.

Product Specifications

• Model: DE-620
• Interface: USB 2.0 (Full-Speed)
• Processor: ARM7
• Supported Standards:
  • ISO14443
  • ISO18092 (NFC)
  • MIFARE Classic®
  • Felica
  • ISO15693
• Card Interface:
  • Contactless smart card interface
  • SAM interface (Secure Access Module)
  • Contact smart card interface
• Communication Speed: Up to 847 kbps (air interface)
• PC/SC Compliance: Yes
• Power Supply: USB-powered
• Use Case Applications:
  • Access control systems
  • e-Passport and e-ID verification
  • Campus and institutional systems
  • E-payment and financial transactions
  • Card issuing and programming systems
• Firmware Update: Supported via USB (PCSC & proprietary protocol)
• Operating System Support: Windows, Linux, macOS (PC/SC-compatible platforms)
• Dimensions: Compact, portable design for desktop or embedded use
• Color: Black
• Category: Biometric Readers, Access Control Readers, USB Smart Card Devices
