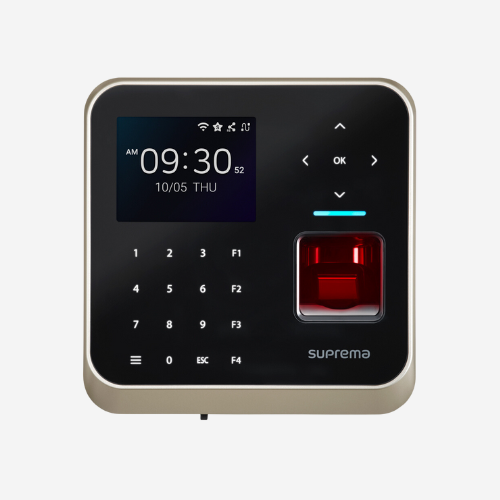

Suprema BS2-OMPW BioStation 2 MIFARE Card & Fingerprint Reader for High-Speed Biometric Access Control

The Suprema BS2-OMPW BioStation 2 MIFARE Card & Fingerprint Reader is a next-generation biometric access control terminal engineered for high-performance environments. Designed with Suprema’s advanced optical sensor technology, enhanced fingerprint algorithm, and ultra-fast processor, it enables rapid authentication of up to 20,000 fingerprints per second. Ideal for both indoor and outdoor use, BioStation 2 boasts an IP65-rated enclosure, massive user capacity, and flexible connectivity including TCP/IP, RS485, USB, Wiegand, Wi-Fi, and Power over Ethernet (PoE). Whether for enterprise buildings, factories, or government facilities, this device delivers unmatched speed, durability, and security.

Product Features

Instant Matching and Authentication

The powerful processor and advanced algorithm provide ultra-fast identification, capable of matching up to 20,000 fingerprints per second for real-time authentication.

High-Capacity User and Log Storage

Supports up to 500,000 users and stores 1,000,000 fingerprint templates, along with up to 3,000,000 event logs for complete data backup even during server disconnection.

Next-Generation Optical Sensor

Captures high-quality fingerprint images in challenging conditions such as wet or dry fingers, ensuring reliable recognition in harsh environments.

IP65-Rated Weatherproof Design

Rugged and sealed exterior protects the device from dust, water, and harsh weather, allowing secure outdoor installation without additional enclosures.

Rapid Data Transfer

Equipped for high-speed communication, BioStation 2 can transfer biometric and user data at a rate of 5,000 users per minute, ideal for large-scale deployments.

Versatile Connectivity Options

Includes TCP/IP, RS485, USB, Wiegand, built-in Wi-Fi, and Power over Ethernet (PoE), offering flexible and cost-effective installation in various environments.

Product Specifications

• Model: BS2-OMPW
• Authentication Methods: Fingerprint, MIFARE Card (RFID), and PIN Code
• Maximum Users Supported: 500,000
• Fingerprint Templates: Up to 1,000,000
• Log Capacity: 3,000,000 events
• Matching Speed: Up to 20,000 fingerprints per second
• Communication Interfaces:
  • Ethernet (TCP/IP)
  • RS485
  • USB
  • Wiegand
  • Built-in Wi-Fi
• Power over Ethernet: IEEE 802.3af (PoE) compliant
• Mounting Type: Surface mounted (plaster)
• Standalone Operation: Yes
• Network Connectivity: Yes
• PC Binding Required: No
• Ingress Protection: IP65 (dust and water resistant)
• Material: High-strength plastic
• Color: Black
• Operating Temperature: -20°C to +50°C
• Dimensions:
  • Width: 142 mm
  • Height: 144 mm
  • Depth: 45 mm
