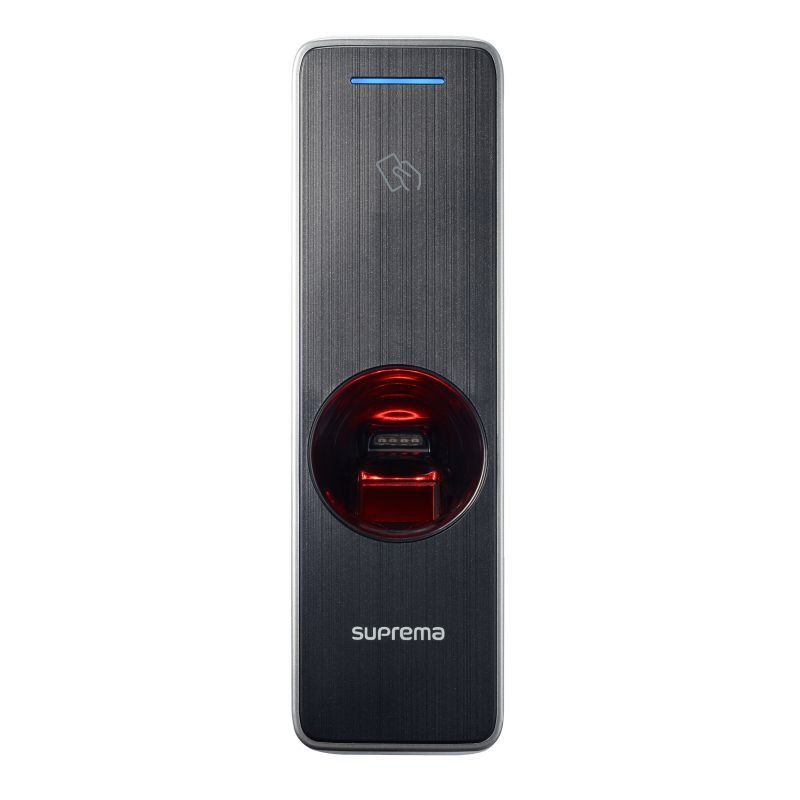

Suprema BEW2-ODP BioEntry W2 Fingerprint and Dual RFID Access Control Reader

Meta Title: Suprema BEW2-ODP BioEntry W2 Outdoor Fingerprint & Dual RFID Reader | Waterproof & Vandal Resistant The Suprema BEW2-ODP BioEntry W2 is a next-generation outdoor fingerprint access control reader that combines powerful biometric authentication with multi-format RFID reading. Designed for high-security applications in demanding environments, it features Suprema’s latest Live Finger Detection (LFD) technology and a robust, vandal-resistant IP67-rated housing. Supporting both fingerprint and dual-band RFID authentication (125kHz and 13.56MHz), this reader ensures reliable and secure access even in the harshest weather conditions. With PoE support and full network capabilities, the BioEntry W2 is ideal for commercial, industrial, and government facilities requiring rugged, scalable, and high-performance access control.

Product Features

Advanced Live Finger Detection Incorporates Suprema’s new generation Live Finger Detection using dual light source imaging (infrared and white light) to effectively detect and reject fake fingerprints made from materials like rubber, silicon, glue, and paper. Rugged Outdoor Design Built with an IP67-rated enclosure, the BioEntry W2 offers complete protection against water, dust, and harsh outdoor conditions—ideal for perimeter access in industrial or outdoor facilities. Vandal-Resistant Housing Constructed from reinforced resin and designed with impact resistance in mind, the device is vandal-resistant, ensuring long-term durability in high-risk areas. Dual RFID Card Compatibility Supports both 125kHz and 13.56MHz RFID cards, including EM, MIFARE, MIFARE Plus, DESFire, FeliCa, and NFC, offering maximum flexibility for multi-credential access systems. High User Capacity Capable of storing up to 500,000 users, making it suitable for enterprise-level access control with large-scale user bases. Power over Ethernet (PoE) Supports IEEE 802.3af PoE, simplifying installation by delivering both power and data over a single cable. Flexible Integration Fully networkable and compatible with Suprema’s BioStar 2 platform. Can operate as a standalone unit or be integrated into a wider IP-based access control system.

Product Specifications

• Model: BEW2-ODP
• Authentication Methods: Fingerprint, RFID (125kHz & 13.56MHz)
• RFID Formats Supported: EM, HID Prox, MIFARE, MIFARE Plus, DESFire, FeliCa, NFC
• Max Number of Users: 500,000
• Interfaces: Ethernet (TCP/IP), RS-485, Wiegand, Relay
• Power Supply: 12V DC or Power over Ethernet (IEEE 802.3af PoE)
• Operating Temperature: -20°C to +50°C
• IP Rating: IP67 (dust and water resistant)
• Housing: Vandal-resistant reinforced resin
• Network Capability: Yes
• Standalone Operation: Supported
• Mounting Method: Surface mount (plaster)
• Color: Grey
• Dimensions: 172 mm (H) x 50 mm (W) x 43.5 mm (D)
