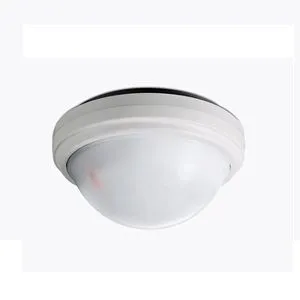

Optex SX-360Z Ceiling Mount PIR Motion Detector
The Optex SX-360Z is a compact, high-performance ceiling mount PIR (Passive Infrared) motion detector that offers full 360-degree detection coverage. Engineered for versatility and precision, it features a patented zoom function that allows flexible adjustment of the detection pattern by simply twisting the domed lens. This innovative design enables optimal performance at any ceiling height, making it ideal for a wide range of applications—from residential spaces to large commercial or office environments. With enhanced sensitivity settings, dense zone coverage, and advanced RFI immunity, the SX-360Z delivers reliable motion detection in any installation.
Product Features
Adjustable Detection Pattern with Zoom Function
Features a patent-listed zoom mechanism that allows installers to easily adjust the detection pattern to match the ceiling height and room size, optimizing coverage and performance.
360-Degree Circular Detection Area
Covers a full circular detection field with up to 276 densely packed detection zones, providing comprehensive motion sensing for large open spaces.
Patented Multi-Focus Lens
Incorporates Optex’s proprietary multi-focus lens technology for precise detection and reduced false alarms across varying distances and motion speeds.
Selectable Pulse Count
Allows configuration of 1, 2, or 4 pulse counts for customized detection response, enabling fine-tuning for different environmental conditions.
Selectable Sensitivity Levels
Three adjustable sensitivity settings—High, Medium, and Low—allow adaptation to room size, temperature, and occupancy patterns.
LED Indicator On/Off Switch
Includes a user-configurable LED for visual status indication, with the option to disable it during operation for covert installations.
In-Line Quad Element Design
Employs a triple dual in-line quad element sensor for enhanced motion recognition and stability, ensuring consistent and accurate performance.
Strong RFI Immunity
Provides resistance to radio frequency interference up to 30V/m, minimizing the risk of false triggers caused by nearby electronic equipment.
Product Specifications
- Detection Coverage: 360-degree circular pattern
- Detection Zones: 276 dense zones
- Adjustable Mounting Height: Pattern adjustable for varied ceiling heights
- Detection Technology: Passive Infrared (PIR)
- Lens: Patented multi-focus lens
- Pulse Count Settings: Selectable (1, 2, or 4)
- Sensitivity Levels: High / Medium / Low
- LED Indicator: On/Off switchable
- Sensor Type: In-line quad element (Triple Dual)
- RFI Immunity: 30V/m
- Application: Residential and commercial security systems
- Installation: Ceiling mount
