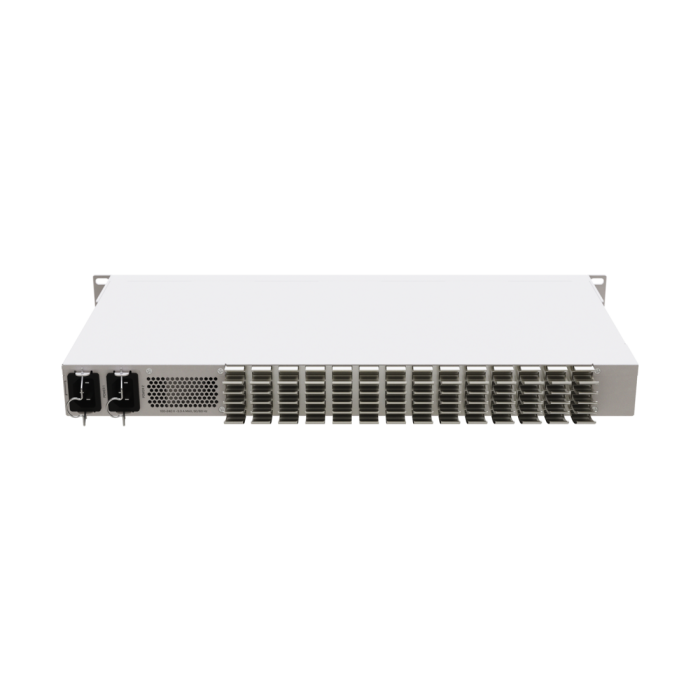

MikroTik CRS326-4C+20G+2Q+RM Cloud Router Switch

The MikroTik CRS326-4C+20G+2Q+RM Cloud Router Switch is a high-performance, enterprise-grade solution designed to meet the demands of modern network environments. With 20 x 2.5G Ethernet ports, 4 x COMBO ports that can be configured as additional 2.5G or 10G SFP+ ports, and 2 x 40G QSFP+ cages for ultra-fast fiber connections, this switch provides the flexibility and speed required for today’s data-intensive tasks. Built with the powerful Marvell Prestera switch-chip, it offers impressive Layer 3 routing capabilities, VLAN support, and jumbo frame handling. It is also equipped with dual-redundant power supplies and a management Ethernet port, ensuring uptime and ease of use. Ideal for offices, studios, and professional environments, this switch offers exceptional performance and value at a competitive price.

Product Features

High-Density 2.5G Ethernet Ports

The CRS326 offers 20 x 2.5 Gigabit Ethernet ports, providing ample bandwidth for high-speed data transfer, perfect for connecting multiple devices, such as workstations, cameras, and other equipment in professional environments.

Flexible COMBO Ports

Equipped with 4 COMBO ports, the switch allows you to choose between 2.5G Ethernet or 10G SFP+ interfaces. This versatility makes it easier to integrate the CRS326 into various network setups and adapt to future demands.

Ultra-Fast Fiber Connectivity

With 2 x 40G QSFP+ ports, the CRS326 provides lightning-fast fiber connectivity, ideal for connecting high-bandwidth devices such as NAS servers or multimedia stations, ensuring rapid data transfer with minimal latency.

Marvell Prestera Switch-Chip

Powered by the Marvell Prestera switch-chip, the CRS326 supports advanced features such as Layer 3 routing, VLANs, link aggregation, and ACL rules, making it capable of handling complex networking tasks efficiently.

Dual-Redundant Power Supplies

The CRS326 features dual-redundant power supplies, ensuring continuous operation and minimizing downtime. This makes the switch highly reliable for mission-critical environments.

Efficient Cooling System

The switch is equipped with 2 cooling fans to maintain optimal operating temperatures, even under heavy workloads, ensuring stable and reliable performance over time.

Budget-Friendly Enterprise Solution

Despite its extensive feature set, the CRS326-4C+20G+2Q+RM offers exceptional value, making it a cost-effective solution for organizations seeking high-speed connectivity and flexibility without breaking the bank.

Product Specifications

General Specifications

• Product Code: CRS326-4C+20G+2Q+RM
• Architecture: MIPSBE
• CPU: QCA9531, 1 core, 650 MHz
• Switch Chip: Marvell 98DX8332
• RouterOS License: Level 6
• Operating System: RouterOS v7
• RAM: 128 MB
• Storage: 32 MB FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 60°C
• Dimensions: 443 x 382 x 44 mm

Power Specifications

• AC Input Range: 100-240V
• Number of AC Inputs: 2
• Max Power Consumption: 70W
• Max Power Consumption Without Attachments: 51W

Ethernet and Fiber Connectivity

• 10/100 Ethernet Port: 1
• 2.5G Ethernet Ports: 20
• COMBO Ports (2.5G Ethernet / 10G SFP+): 4
• 40G QSFP+ Ports: 2

Cooling and Monitoring

• Cooling System: 2 fans
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Peripherals

• Serial Console Port: RJ45

Certification & Approvals

• Certification: CE, EAC, ROHS
• IP Rating: IP20
