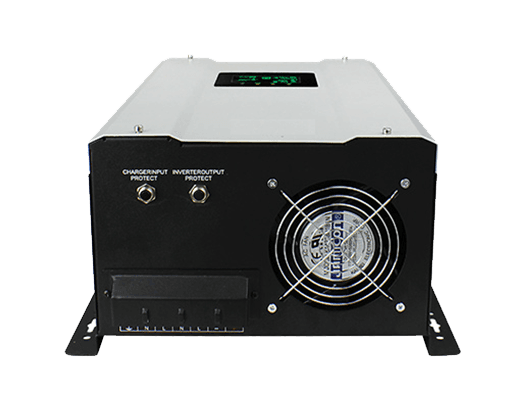

Magnizon Solar Inverter 3000VA – HG3024SW-LCD | Pure Sine Wave Inverter

The Magnizon Solar Inverter 3000VA – HG3024SW-LCD is a high-performance, reliable power solution designed to seamlessly convert 24V DC to pure sine wave AC for a wide range of applications. This inverter is ideal for off-grid and on-grid power systems, providing smooth and continuous power for homes, small offices, critical systems, and automotive needs. Equipped with advanced features like automatic line-to-battery switchover, smart 3-stage charging, and a user-friendly LCD display, the HG3024SW-LCD offers maximum efficiency with low idle current and high surge capacity. Its pure sine wave output ensures compatibility with sensitive electronic devices, making it a top choice for backup power and energy storage systems.

Product Features

Pure Sine Wave Output

The Magnizon HG3024SW-LCD inverter delivers a pure sine wave output that is safe for sensitive electronic devices such as computers, TVs, refrigerators, and power tools. This ensures that equipment operates smoothly without risk of interference or damage.

Efficient DC-to-AC Conversion

With an impressive conversion efficiency of >97%, this inverter maximizes energy usage while minimizing energy loss, providing high-performance power for both residential and industrial applications.

Smart 3-Stage Battery Charging System

The integrated 3-stage charging system (CC-CV-Floating) allows for efficient battery charging, prolonging the life of your battery bank. The inverter automatically adjusts the charging parameters for optimal performance and prevents overcharging, maintaining battery health over time.

Auto Line-to-Battery Transfer

When the AC source is unavailable, the inverter automatically switches to battery mode to provide continuous power. This auto switchover ensures that you won’t experience any downtime, making it a reliable choice for off-grid and backup power needs.

High Surge Capacity

The inverter has a surge power rating of 6000VA, which allows it to handle power surges and transient loads without any issues. This makes it suitable for high-power equipment, such as motors, pumps, and compressors.

LCD Display with Fault Codes

The large LCD display shows real-time data such as output power, voltage, and battery status. Additionally, fault codes are displayed for easy troubleshooting, making maintenance simpler and more efficient.

Comprehensive Protection Features

The Magnizon HG3024SW-LCD is designed with multiple safety features, including battery deep discharge protection, overload protection, over-temperature protection, and short circuit protection, ensuring the longevity of the inverter and connected equipment.

Quiet and Efficient Operation

Operating at a low noise level of less than 60dB, the inverter is well-suited for residential and office environments. It features forced air cooling with a variable-speed fan to ensure efficient operation without excessive noise.

Product Specifications

• Rated Power: 3000VA / 2.4KW
• Surge Power: 6000VA
• Input Voltage (AC): 220/230/240V AC
• Input Frequency: 50Hz/60Hz (auto-sensing)
• Output Voltage Regulation: 230V AC ±5%
• Efficiency: 95-97%
• Nominal DC Input Voltage: 24V DC
• Transfer Time: 6-10ms (Max)
• No Load Power Consumption: <10W
• Saving Mode Power Consumption: <5W
• Output Waveform: Pure sine wave
• Output Frequency: 50Hz/60Hz (auto-sensing)
• Overload Protection: 5 sec at >150% load; 10 sec at 110-150% load
• Low DC Warning Voltage:
  • <20% Load: 22.0V DC
  • 20-50% Load: 21.4V DC
  • 50% Load: 20.2V DC
• Low DC Cut Off Voltage:
  • <20% Load: 21.0V DC
  • 20-50% Load: 20.4V DC
  • 50% Load: 19.2V DC
• High DC Recovery Voltage: 29V DC
• High DC Cut-Off Voltage: 31V DC
• Battery Voltage: 24V DC
• Floating Charge Voltage: 27V DC
• Maximum Charge Current: 20A
• Bulk Charging Voltage (Flooded Battery): 29.2V DC
• Bulk Charging Voltage (AGM/GEL Battery): 28.2V DC
• Cooling: Forced air, variable-speed fan
• Noise Level: <60dB
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -15°C to 50°C
• Humidity: 5% to 95% (non-condensing)
• Dimensions (WxHxD): 326 x 268 x 88.8 mm
• Net Weight: 5.8 kg
• Safety Certifications: CE, RoHS, ISO9001, ISO14001

Applications

• Off-Grid Solar Systems: Ideal for homes, cabins, and small offices in remote areas with no access to grid power.
• Backup Power for Homes and Offices: Provides reliable backup power for essential appliances, security systems, and communication equipment.
• Automotive Power Solutions: Perfect for RVs, trucks, and other mobile setups requiring off-grid power.
• Critical Infrastructure: Supports telecommunication systems, security applications, and other critical devices that require uninterrupted power.
• Small Business Backup: Ideal for small businesses looking for a reliable, cost-effective backup power solution.
