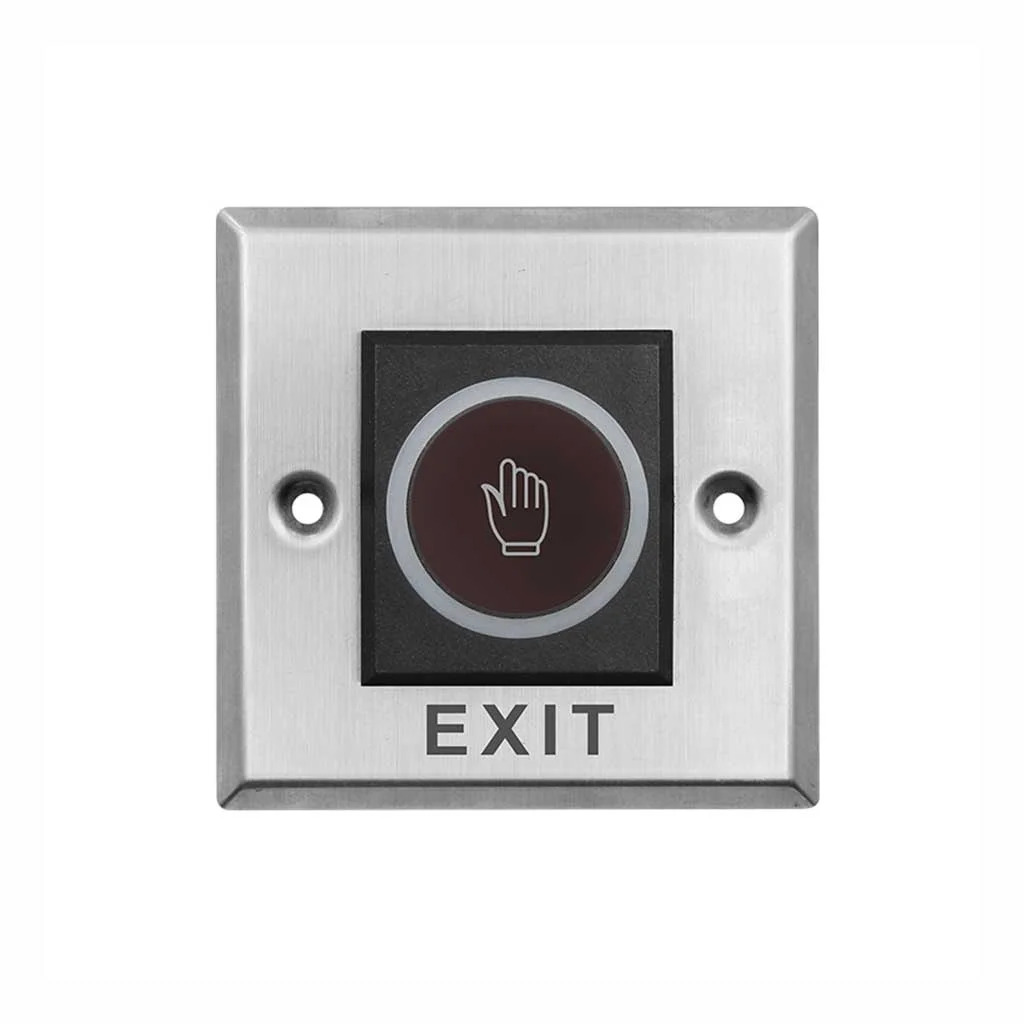

Infrared Sensor No Touch Exit Button – Wide Stainless Steel Touchless Access Control Switch

The Infrared Sensor No Touch Exit Button – Wide offers a modern, touch-free solution for controlling exits in secure environments. Designed with advanced infrared technology and a durable stainless steel panel, this exit switch provides a hygienic, efficient, and visually appealing alternative to traditional push buttons. It integrates seamlessly with most access control systems, making it ideal for offices, hospitals, banks, and commercial spaces where cleanliness and convenience are essential.

Product Features

Contactless Operation with Infrared Technology The sensor activates with a simple hand wave, eliminating the need for physical contact. This reduces the transmission of bacteria and viruses, promoting hygiene in shared spaces and high-traffic areas. Dual-Color LED Indicator Equipped with an intuitive visual indicator:

• Blue when in standby mode
• Green when triggered This ensures users clearly understand the operational status, even in low-light conditions.

Durable Stainless Steel Construction The front panel is crafted from 304 stainless steel, offering high resistance to wear and corrosion while maintaining a sleek, professional appearance. Suitable for demanding indoor environments. Wide Compatibility with Access Control Systems Works with all standard access control systems through NO/NC/COM dry contact output, making it easy to integrate into existing or new setups. Easy Installation Designed for quick wall mounting with a standard 80mm hole spacing, this unit includes all necessary wiring and mounts. The 160mm cord length simplifies connection to control boards or door strike systems.

Product Specifications

• Operating Voltage: 12VDC
• Current Rating: 3A
• Output Contact Type: NO / NC / COM
• Material: 304 Stainless Steel Panel
• LED Indicator Colors:
  • Blue (Standby)
  • Green (Activated)
• Operating Temperature Range: -20°C to +50°C
• Humidity Range: < 95% RH
• Dimensions: 115mm (L) x 70mm (W) x 27mm (D)
• Cord Length: 160mm
• Mounting Hole Distance: 80mm (standard fitting)
