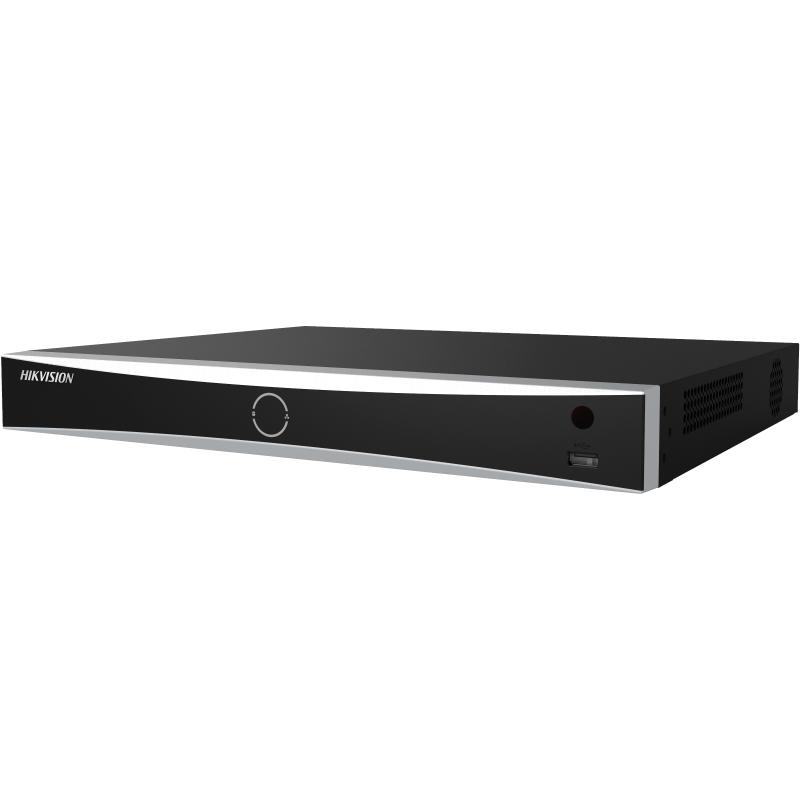

Hikvision DS-7616NXI-K2/16P 16-Channel PoE AcuSense 4K NVR

The Hikvision DS-7616NXI-K2/16P is a 16-channel network video recorder designed for reliable, intelligent, and high-resolution surveillance. With 16 built-in PoE ports, this NVR simplifies installation by providing both power and data to IP cameras through a single cable. Integrated with AcuSense AI technology, it enhances motion detection accuracy by identifying human and vehicle targets, significantly reducing false alarms. Supporting 4K ultra-HD recording, smart playback, and H.265+ compression, this NVR is well-suited for medium to large-scale security deployments such as office buildings, retail stores, schools, and warehouses.

Product Features

16-Channel Camera Support with Built-in PoE Ports

Connect up to 16 IP cameras using integrated PoE ports that provide simultaneous power and network connectivity, allowing for plug-and-play setup and reduced infrastructure costs.

AcuSense AI Technology for Human and Vehicle Detection

AcuSense technology uses advanced deep learning algorithms to detect human and vehicle movement accurately, minimizing false alarms triggered by animals, falling leaves, or environmental changes.

4K Ultra-HD Recording for Enhanced Visual Clarity

Capture crisp and clear video footage with support for 4K (8MP) resolution, ideal for detailed forensic analysis and high-security monitoring.

H.265+ Video Compression for Efficient Storage

H.265+ compression reduces file sizes and bandwidth consumption without compromising image quality, enabling longer recording retention with less storage space.

Plug-and-Play with Auto Detection

Automatically detects and configures connected PoE cameras for quick and seamless setup, making installation more efficient.

Dual HDMI and VGA Video Output

Supports HDMI output up to 4K resolution and VGA output up to 1080p, allowing for flexible multi-display configurations in control rooms and monitoring stations.

Smart Playback and Search for Rapid Event Review

Utilize smart search to locate motion-based events quickly, allowing for faster review and evidence retrieval during security incidents.

Remote Access via Hik-Connect App and Browser

Access live feeds, playback recordings, and manage system settings remotely using the Hik-Connect mobile app or supported web browsers.

Intelligent Analytics Including Facial Recognition

Supports advanced analytics such as facial recognition, perimeter protection, and motion detection 2.0, enhancing proactive monitoring and alert capabilities.

Compact 1U Rackmount Design for Professional Deployment

Designed for efficiency and integration, the 1U rackmount form factor fits neatly into standard equipment racks in control rooms or server enclosures.

Product Specifications

• IP Camera Input: 16 channels
• PoE Ports: 16 × 10/100 Mbps, IEEE 802.3af/at compliant
• Maximum Resolution: Up to 12 MP
• AI Features by Device: Facial recognition, perimeter protection, motion detection 2.0
• AI Features by Camera: ANPR, line crossing, object removal, and face capture
• Facial Recognition: Supports up to 16 face libraries with 20,000 images
• Decoding Capability:
  • AI on: 1 × 12MP / 2 × 8MP / 4 × 4MP / 8 × 1080p
  • AI off: 2 × 12MP / 3 × 8MP / 6 × 4MP / 12 × 1080p
• Compression Formats: H.265+/H.265/H.264+/H.264
• Storage: 2 SATA interfaces, up to 10TB per HDD
• Audio I/O: 1 RCA input, 1 RCA output
• Video Output:
  • HDMI: Up to 4K (3840 × 2160)
  • VGA: Up to 1080p
• Network Interface: 1 × RJ-45 10/100/1000 Mbps
• Remote Connections: Supports up to 128 users
• USB Ports: 2 × USB 2.0
• Alarm I/O: 4 inputs / 1 output
• Power Supply: 100 – 240 VAC, 50/60 Hz
• Power Consumption: ≤ 15W (without HDD and PoE off)
• Dimensions: 385 mm × 315 mm × 52 mm
• Weight: ≤ 3 kg (without HDD)
• Working Temperature: -10 °C to 55 °C
• Humidity: 10% to 90%
• Certifications: FCC Part 15 Subpart B
