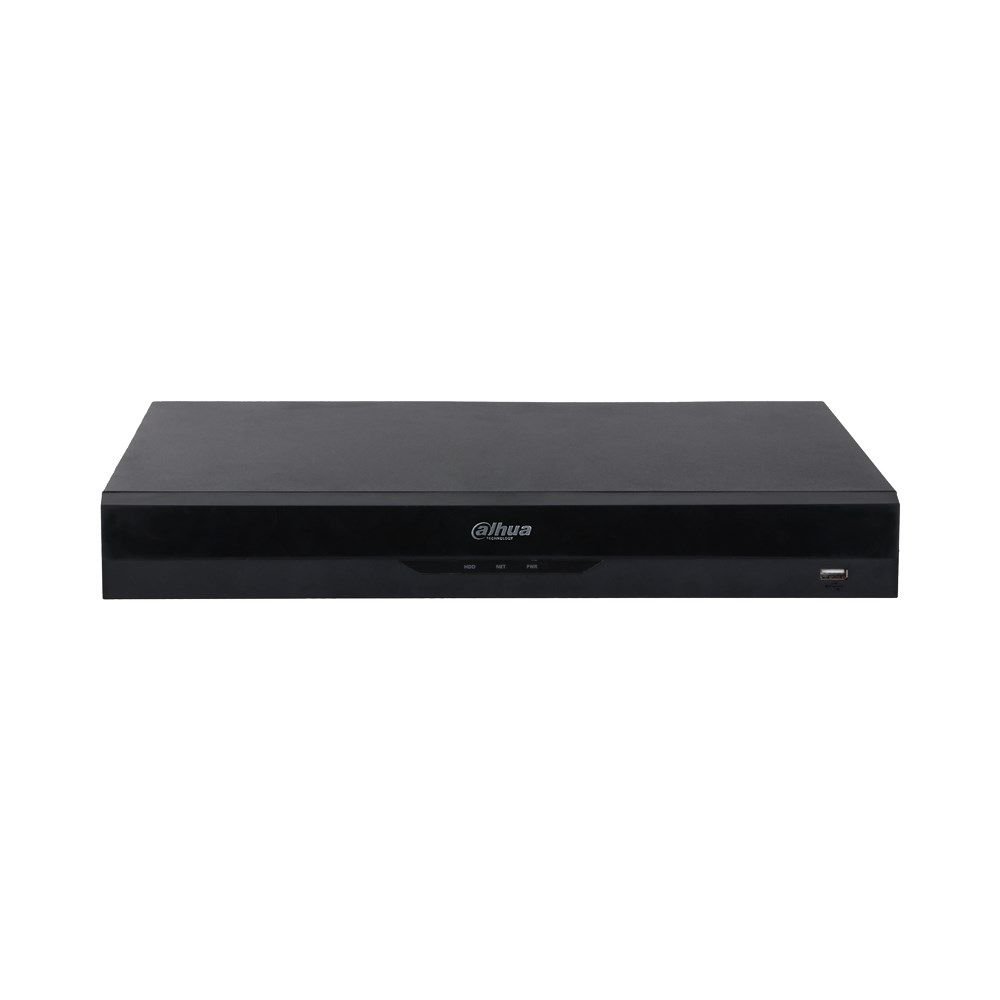

DAHUA 16ch NVR 16POE 2HDD’s up to 8MP DHI-NVR4216-16P-4KS2/L

The DAHUA DHI-NVR4216-16P-4KS2/L is a high-performance 16-channel network video recorder (NVR) with built-in 16 Power-over-Ethernet (PoE) ports for seamless device integration. Supporting up to 8MP ultra-high-definition recording, this NVR ensures crystal-clear video capture and playback for reliable surveillance. With dual hard drive bays for up to 20TB of storage capacity, the DHI-NVR4216-16P-4KS2/L is ideal for medium to large-scale security systems in commercial, industrial, or residential applications.

Product Features

16-Channel IP Camera Support

The NVR supports up to 16 IP cameras, providing flexibility and scalability for comprehensive surveillance coverage.

Integrated 16 PoE Ports

Built-in PoE ports simplify installation by powering connected IP cameras directly through the Ethernet cables, eliminating the need for additional power sources.

4K Ultra HD Recording

With support for up to 8MP resolution, the NVR delivers sharp, detailed video, perfect for capturing critical details in surveillance footage.

Dual HDD Bays with Large Storage Capacity

The NVR accommodates up to 2 hard drives, offering a combined storage capacity of up to 20TB to ensure extended video retention periods.

H.265+ Compression Technology

Advanced H.265+ video compression reduces storage and bandwidth requirements, maintaining high-quality video while minimizing resource consumption.

Intelligent Video System (IVS)

Features include smart detection capabilities like intrusion detection, line crossing, and object removal, enhancing situational awareness and response efficiency.

Remote Access and Management

Dahua’s mobile app and web interface enable remote live view, playback, and device management from anywhere, ensuring constant monitoring and control.

HDMI and VGA Outputs

Supports HDMI and VGA video outputs with up to 4K resolution for clear video display on monitors and TVs.

Enhanced Security Features

Equipped with multi-level user access, data encryption, and system event alerts to protect against unauthorized access and ensure reliable operation.

Product Specifications

• Channels: 16 IP channels
• PoE Ports: 16 PoE ports (802.3af/at compliant)
• Maximum Camera Resolution: Up to 8MP
• Storage: 2 HDD bays, up to 10TB per drive (20TB total)
• Compression Format: H.265+, H.265, H.264+, H.264
• Recording Bandwidth: Up to 200 Mbps
• Playback Channels: 1-Channel (8MP) or multiple channels at lower resolution
• Video Output: HDMI (4K), VGA (1080p)
• Audio Input/Output: 1 input / 1 output
• Network Ports: 1 RJ-45 (10/100/1000 Mbps Ethernet)
• USB Ports: 2 USB ports (1 USB 3.0, 1 USB 2.0)
• Operating System: Embedded Linux
• Power Supply: AC 100–240V, 50/60Hz
• Dimensions: 375mm x 282mm x 56mm
• Weight: ~2.6 kg (without HDD)
• Operating Temperature: -10°C to 55°C
• Certifications: CE, FCC, RoHS
• Warranty: 2 years
