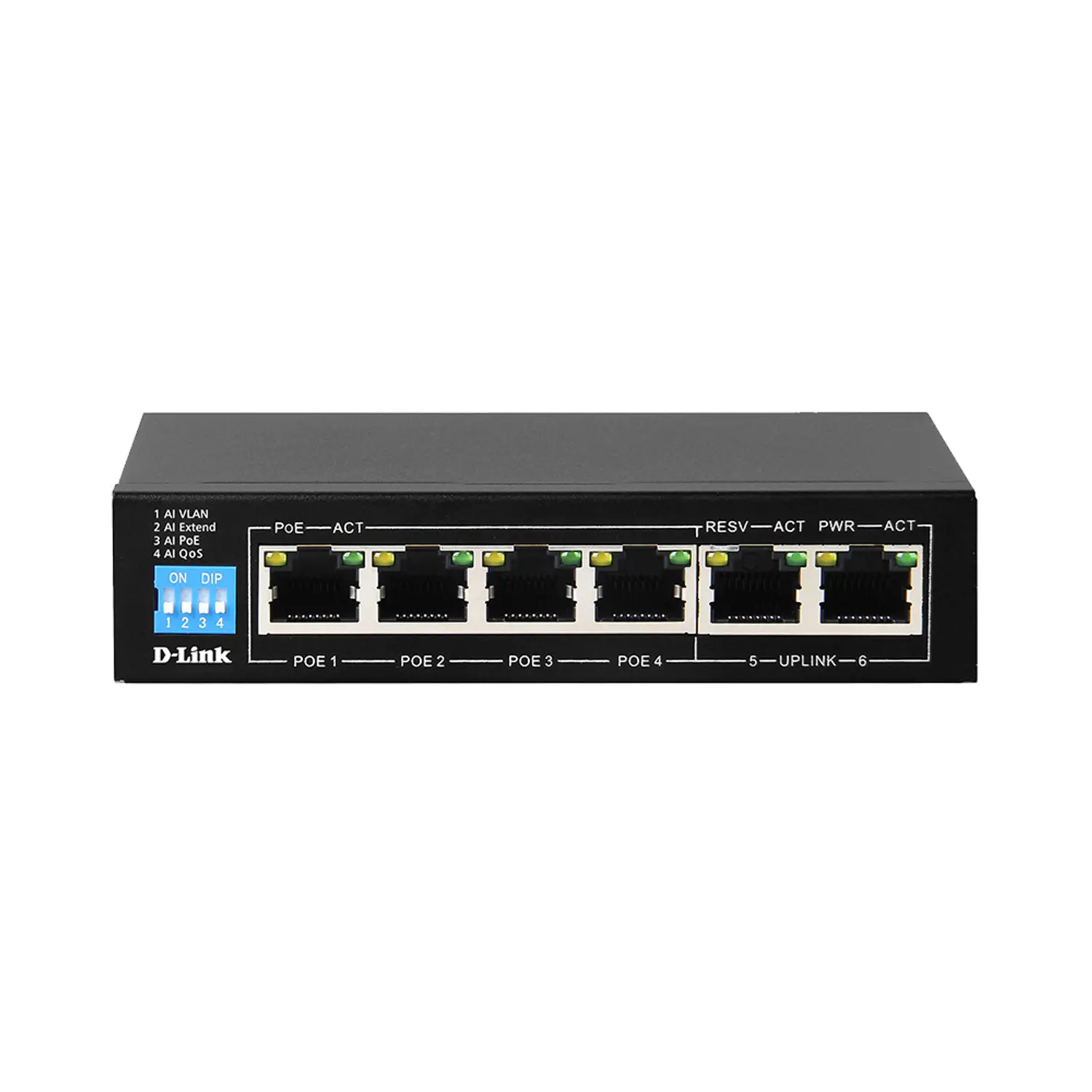

D-Link DGS-F1006P-E 6-Port 250m PoE+ Gigabit Switch – 4 PoE & 2 Uplink Ports
The D-Link DGS-F1006P-E 6-Port Gigabit PoE+ Switch is engineered for small businesses, home offices, and surveillance applications requiring extended PoE distance and seamless connectivity. Equipped with 4 PoE+ ports and 2 dedicated uplink ports, this unmanaged switch supports long-range PoE transmission up to 250 meters, making it ideal for deploying IP cameras, wireless access points, or VoIP phones in distant or hard-to-reach locations. With Gigabit performance, energy efficiency, and a plug-and-play design, the DGS-F1006P-E delivers reliability and flexibility in a compact form factor.
Product Features
4 PoE+ Ports for Power and Data
The switch includes four IEEE 802.3af/at PoE+ ports that deliver up to 30 watts per port, allowing you to power network devices like IP cameras and wireless access points without the need for separate power supplies.
2 Dedicated Gigabit Uplink Ports
Two non-PoE Gigabit uplink ports provide high-speed connections to your router, NVR, or backbone switch, ensuring smooth data flow and preventing bandwidth bottlenecks.
250-Meter Long-Range PoE Support
Supports PoE transmission up to 250 meters in extended mode, offering exceptional flexibility in surveillance and other PoE-centric deployments where long-distance cabling is required.
Plug and Play Simplicity
No configuration or software setup is needed. Simply connect your devices, and the switch will begin operating immediately with intelligent detection and power allocation.
Intelligent QoS for Prioritized Traffic
Built-in Quality of Service (QoS) ensures latency-sensitive applications like video surveillance and VoIP receive bandwidth priority for smooth, uninterrupted operation.
Silent Fanless Design
A fanless architecture ensures silent operation, making it ideal for noise-sensitive environments like offices or small business premises.
Energy-Efficient Operation
Compliant with IEEE 802.3az Energy Efficient Ethernet, the switch automatically reduces power consumption on inactive ports, lowering energy costs while maintaining performance.
Product Specifications
- Total Ports: 6 (4 x PoE+ ports, 2 x Gigabit uplink ports)
- Port Speeds: 10/100/1000 Mbps auto-sensing
- PoE Standard: IEEE 802.3af/at
- PoE Power Budget: 60W total (up to 30W per port)
- Switching Capacity: 12 Gbps
- Maximum PoE Distance: 250 meters in extended mode
- Mounting Options: Desktop or wall-mountable
- Dimensions: 125 x 75 x 27 mm
- Operating Temperature: 0°C to 40°C
- Power Input: External power adapter
- Energy Efficiency: IEEE 802.3az compliant
- Fan: Fanless design
- Warranty: 1 year
