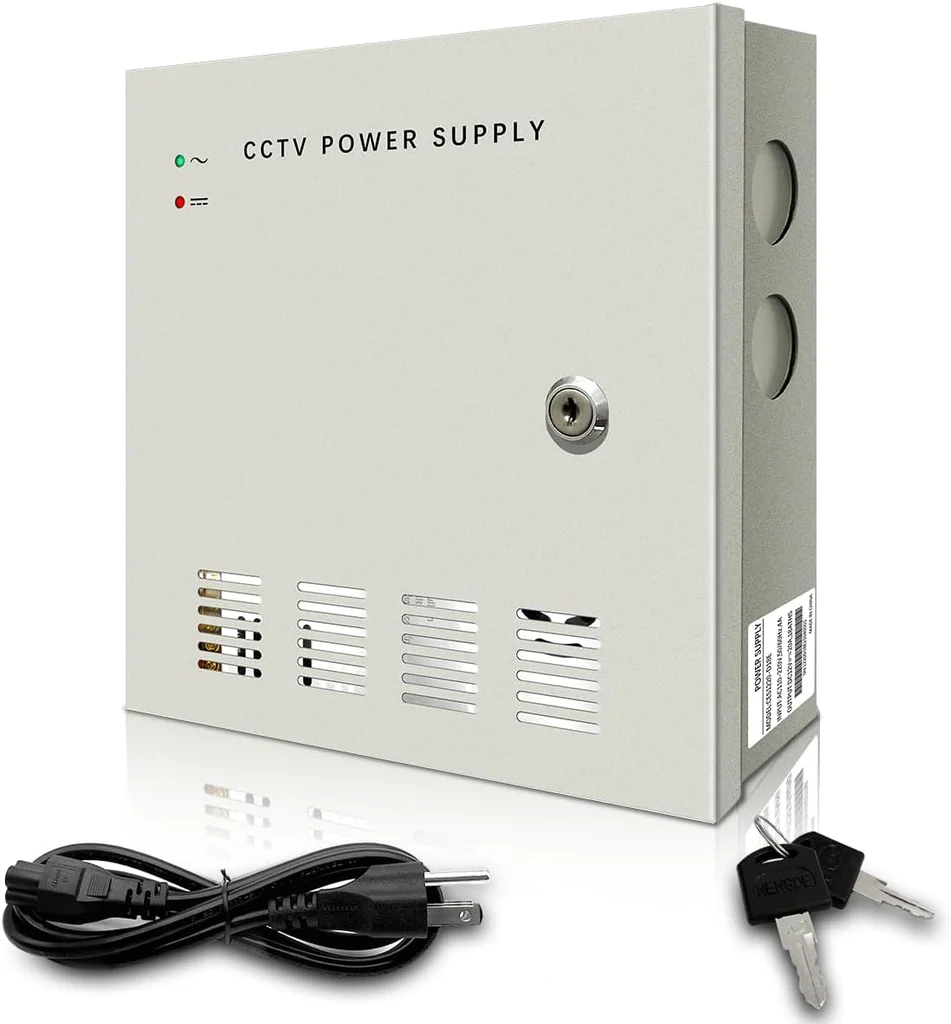

CCTV Camera Power Supply Unit (PSU) 12V – 5A – Closed Enclosure – 4 Channel Output

The CCTV Camera Power Supply Unit 12V – 5A Closed Enclosure is a reliable, efficient, and compact power distribution unit designed for powering up to 4 CCTV cameras simultaneously. With a steady 12V DC output and a total power capacity of 60 watts, this PSU is ideal for small to medium surveillance setups. Housed in a secure closed metal casing, it ensures safety, protection, and durability in demanding environments. It’s built for long-term reliability with an MTBF of over 50,000 hours and a failure rate of less than 3%.

Product Features

4 Channel CCTV Power Distribution Supports up to 4 CCTV cameras, simplifying power management in small surveillance systems and reducing cable clutter. Stable 12V 5A Output Provides consistent 12V DC power across all channels with a total capacity of 5 Amps, suitable for standard analog and IP camera systems. Universal AC Input Wide AC input voltage range from 85V to 264V, making it compatible with various power conditions without the need for a stabilizer. Enclosed Metal Housing Closed enclosure design ensures safe operation and protects internal components from dust, tampering, and minor environmental hazards. High Reliability and Long Lifespan Engineered with a mean time between failures (MTBF) greater than 50,000 hours and a failure rate under 3%, ensuring long-lasting performance in continuous-use environments. Compact Design for Easy Installation Slim profile and small footprint (205 x 235 x 55 mm) allow for flexible mounting options, even in tight spaces. Two-Year Manufacturer Warranty Comes with a full 2-year warranty, offering peace of mind for installers and end-users alike.

Product Specifications

• Input Voltage Range: 85V – 264V AC
• Output Voltage: 12V DC
• Total Output Current: 5 Amps
• Total Output Power: 60 Watts
• Number of Channels: 4
• Enclosure Type: Closed metal housing
• Dimensions: 205 mm x 235 mm x 55 mm
• Warranty: 2 years
• MTBF (Mean Time Between Failures): > 50,000 hours
• Failure Rate: < 3%
• Operating Temperature: 0°C to 50°C (recommended range)
• Protection Features: Overload protection, short-circuit protection (varies by model and configuration)
